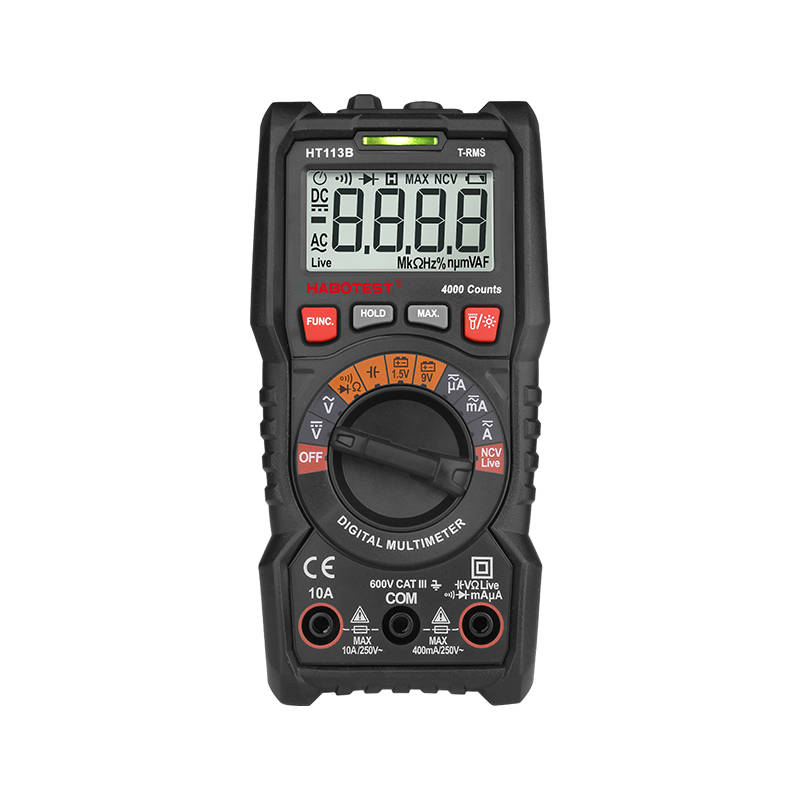

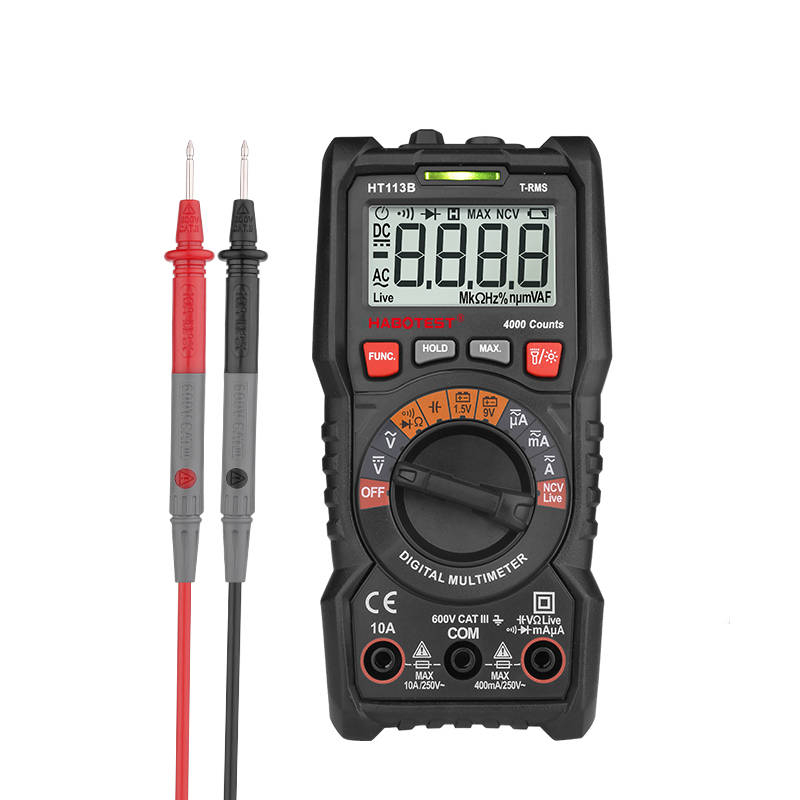

Habotest HT113B digital universal multimeter

Equip yourself with the lightweight and handy Habotest HT113B digital universal multimeter, which will allow you to conveniently and safely measure voltage, current or resistance. Habotest HT113B is equipped with a practical stand so you can put the product on the shelf, its advantage is also the NCV function, the ability to test diodes and a flashlight. Made of soft material, the casing is pleasant to the touch, but also extremely durable, resistant to wear and fall.

Many useful functions

The Habotest HT113B digital universal multimeter offers a number of functions that are perfect for DIY and electrical work. The device allows you to measure DC and AC voltage, DC and AC current and resistance, plus it can test diodes and offers NCV function. Special buttons will allow you to conveniently change functions, while the easy-to-read display provides access to the results you need. The number of counts is 4000, moreover, the multimeter allows continuity measurement and data storage.

Thoughtful design

The device is distinguished by its handy design and weighs only about 220 g. Thanks to the use of soft material, the housing of the device is pleasant to the touch, moreover, it is distinguished by high wear and fall resistance. The multimeter is easy to transport and facilitates various types of electrical work, and thanks to the stand you can put it on a table, for example. The low battery indicator and backlight are also a plus.

Producer Habotest
Model HT113 HT113B HT113C
DC voltage measurement range 200mV/2V/20V/200V/600V
±(0,5%+3)
400mV/4V/40V/400V/600V
±(0,5%+3)
600mV/6V/60V/600V
±(0,5%+3)
AC voltage measurement range 200V/600V ±(1,0%+3) 400mV/4V/40V/400V/600V
±(1,0%+3)
600mV/6V/60V/600V
±(1,0%+3)
DC current measurement range 20mA/ 200mA ±(1,2%+3) 10A ±(2,0%+3) 400uA/4000uA/40mA/400mA
±(1,2%+3) 10A ±(2,0%+3)
600uA/6000uA/60mA/600mA
±(1,2%+3) 10A ±(2,0%+3)
AC current measurement range - 400uA/4000uA/40mA/400mA
±(1,5%+3) 10A ±(2,0%+3)
600uA/6000uA/60mA/600mA
±(1,5%+3) 10A ±(2,0%+3)
Resistance measurement range 200ꭥ/2kꭥ/20kꭥ/200kꭥ/2Mꭥ/20Mꭥ
±(1,0%+3)
400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ
±(1,0%+3)
600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ
±(1,0%+3)
Capacitance measurement range - - 10nF/100nF/1µF/10µF/100µF/1mF/10mF
±(4,0%+5) 100mF ±(5,0%+5)
Frequency measurement range - - 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
±(1,0%+3)
Measuring range of fill factor - - 1%~99% ±(3,0%+3)
Live Test No No Yes
NCV No Yes Yes
Diode testing Yes Yes Yes
Continuity Yes Yes Yes
Number of counts 2000 4000 6000
Data storage Yes Yes Yes
True RMS value No Yes Yes
Bandwidth 40~400Hz 1kHz 1kHz
Low battery indicator Yes Yes Yes
Automatic power off function Yes Yes Yes
Illumination Yes Yes Yes
Flashlight No Yes Yes
Power supply 2x AAA battery 1.5V 2x AAA battery 1.5V 2x AAA battery 1.5V
Safety EN61010-2-030
EN61010-2-033
CAT III 600V
EN61010-2-030 EN61010-2-033
CAT III 600V
EN61010-2-030 EN61010-2-033
CAT III 600V
Weight Approx. 220 g Approx. 220 g Approx. 220 g
Dimensions 151 x 75 x 48 mm 151 x 75 x 48 mm 151 x 75 x 48 mm
