Habotest HT113 Digital Universal Multimeter

Habotest
59,00 Lei
Stoc furnizor livrare 4-5 zile
In stoc
Limita stoc
Adauga in cos
Cod Produs: innp_26276 Ai nevoie de ajutor? 0770131121
Adauga la Favorite Cere informatii
  • Descriere
  • Review-uri (0)

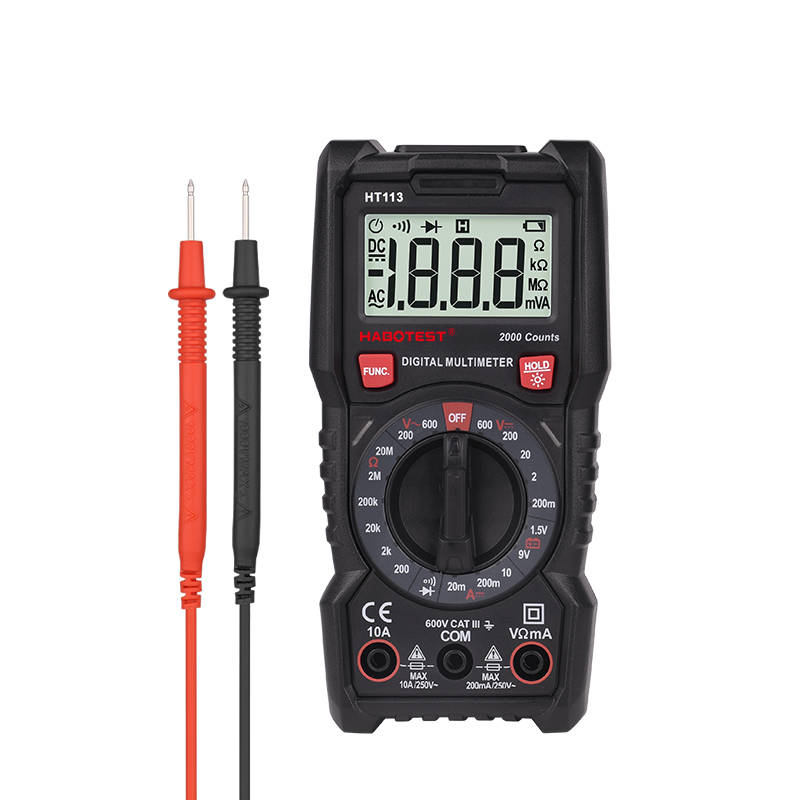

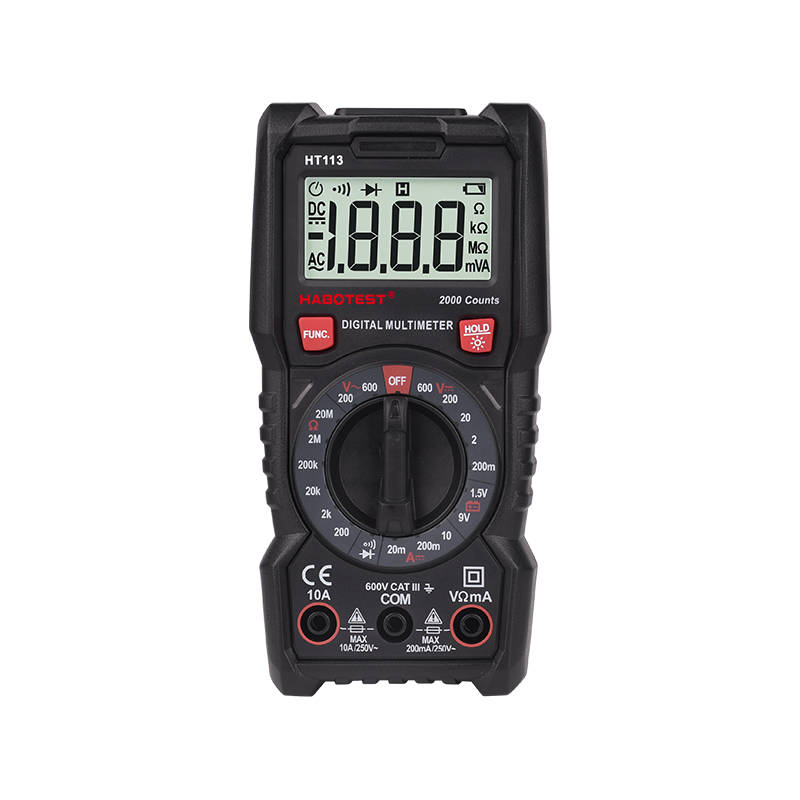

Habotest HT113 digital universal multimeter

Equip yourself with the lightweight and handy Habotest HT113 digital universal multimeter, which will allow you to conveniently and safely measure voltage, current, resistance and many other values. Habotest HT113 is equipped with a practical stand, so you can put the product on the shelf. Made of soft material, the casing is pleasant to the touch, but also extremely durable, resistant to wear and fall.

A range of functions

The Habotest HT113 digital multi-purpose multimeter offers a number of functions and is perfect for measuring DC and AC voltage, DC current or resistance, in addition, it can test diodes and measure continuity. Special buttons will allow you to conveniently change functions, while the easy-to-read display provides access to the results you need.

Thoughtful design

The device is distinguished by its handy design and weighs only about 220 g. Thanks to the use of soft material, the casing of the device is pleasant to the touch, in addition, it is distinguished by its high resistance to wear and fall. The multimeter is easy to transport and facilitates various types of electrical work, and thanks to the stand you can put it on a table, for example.

Producer Habotest
Model HT113 HT113B HT113C
DC voltage measurement range 200mV/2V/20V/200V/600V
±(0,5%+3)
400mV/4V/40V/400V/600V
±(0,5%+3)
600mV/6V/60V/600V
±(0,5%+3)
AC voltage measurement range 200V/600V ±(1,0%+3) 400mV/4V/40V/400V/600V
±(1,0%+3)
600mV/6V/60V/600V
±(1,0%+3)
DC current measurement range 20mA/ 200mA ±(1,2%+3) 10A ±(2,0%+3) 400uA/4000uA/40mA/400mA
±(1,2%+3) 10A ±(2,0%+3)
600uA/6000uA/60mA/600mA
±(1,2%+3) 10A ±(2,0%+3)
AC current measurement range - 400uA/4000uA/40mA/400mA
±(1,5%+3) 10A ±(2,0%+3)
600uA/6000uA/60mA/600mA
±(1,5%+3) 10A ±(2,0%+3)
Resistance measurement range 200ꭥ/2kꭥ/20kꭥ/200kꭥ/2Mꭥ/20Mꭥ
±(1,0%+3)
400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ
±(1,0%+3)
600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ
±(1,0%+3)
Capacitance measurement range - - 10nF/100nF/1µF/10µF/100µF/1mF/10mF
±(4,0%+5) 100mF ±(5,0%+5)
Frequency measurement range - - 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
±(1,0%+3)
Measuring range of fill factor - - 1%~99% ±(3,0%+3)
Live Test No No Yes
NCV No Yes Yes
Diode testing Yes Yes Yes
Continuity Yes Yes Yes
Number of counts 2000 4000 6000
Data storage Yes Yes Yes
True RMS value No Yes Yes
Bandwidth 40~400Hz 1kHz 1kHz
Low battery indicator Yes Yes Yes
Automatic power off function Yes Yes Yes
Illumination Yes Yes Yes
Flashlight No Yes Yes
Power supply 2x AAA battery 1.5V 2x AAA battery 1.5V 2x AAA battery 1.5V
Safety EN61010-2-030
EN61010-2-033
CAT III 600V
EN61010-2-030 EN61010-2-033
CAT III 600V
EN61010-2-030 EN61010-2-033
CAT III 600V
Weight Approx. 220 g Approx. 220 g Approx. 220 g
Dimensions 151 x 75 x 48 mm 151 x 75 x 48 mm 151 x 75 x 48 mm
